Solid State RF Amplifier Specifications & Pricing

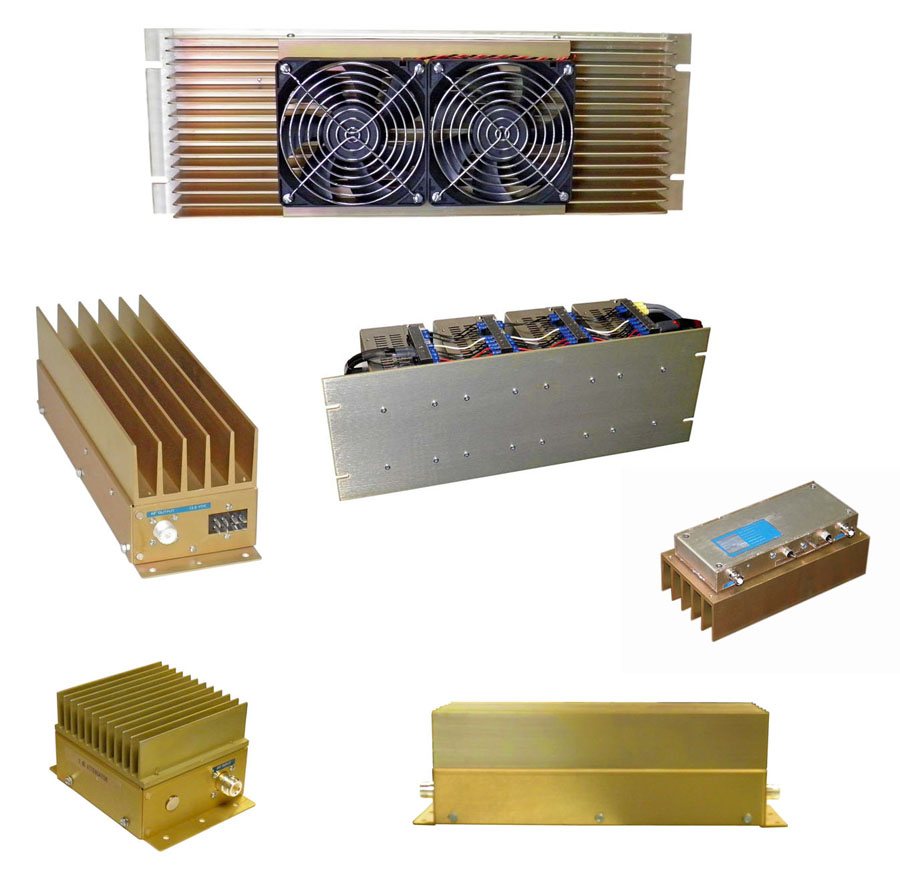

Henry Radio manufactures a broad range of solid state RF power amplifiers for many different applications. We have many models ranging from 1.8 to 512 MHz and from 10 to 500 watts output. Our products are sold regularly for use in mobile, repeater, and base communications systems. We also offer sell many models for in-house and wide area paging systems. Some of of our units are used for GPS tractor control, remote clock setting, laboratory RF sources, and other commercial and industrial uses. If you don't see a model that meets your exact requirement, please contact us with your specification and we will see if we can help.



HF (3-30 MHz) | Low Band (30-60 MHz) | Mid Band (60-88 MHz) | FM (88-108 MHz)
VHF (136-174 MHz) | 220 (200-260 MHz) | UHF (400-512 MHz)

General Specifications

Emission: FM (Class C) and limited digital modes.
Input/Output Impedance: 50 ohms nominal
Connectors: UHF, N, or BNC as required - others on request.
Insertion Loss: Less than 1 dB with T/R relay.
Type Acceptance: When used with type-accepted exciters - where applicable.
Harmonic Attenuation: Better than FCC requirements at all power levels.
Duty Cycle: Mobile packages- 50%--Repeater/Paging/Base - 100%.
Power Requirements: +13.8 vdc nominal (negative ground).
Dimensions: See chart below
Warranty: 1 year, limited.
Transmit/Receive Relays: Standard on mobile amplifiers, optional on repeater/base.

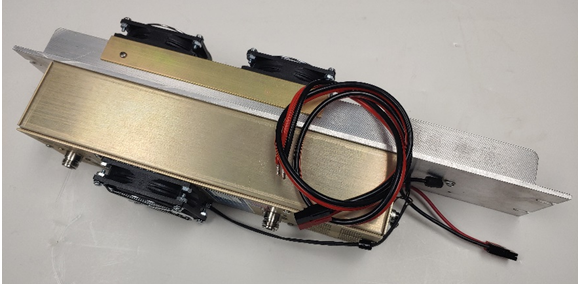

Cooling - Mobile: Conservative heat sinks

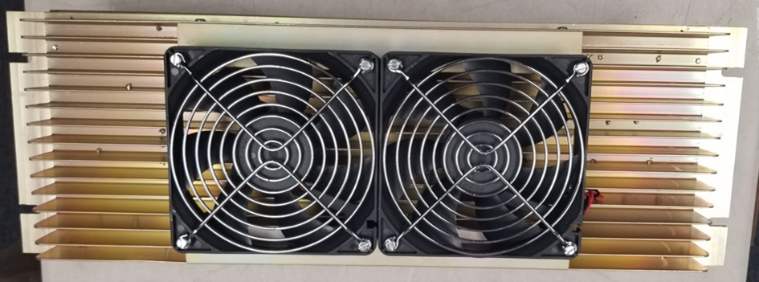

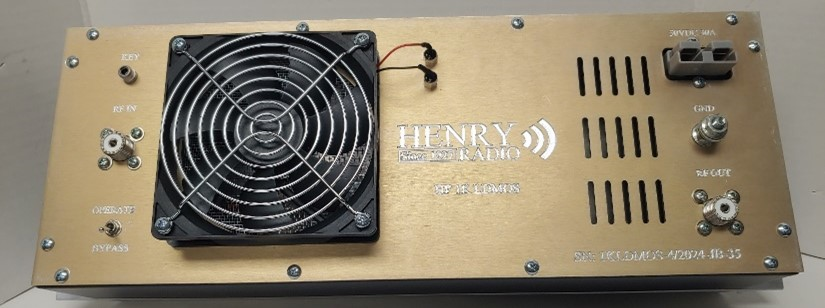

Cooling - Repeater/Paging/Base: Thermostat controlled fans.

HF Power Amplifiers

Model Watts In/Out Bandwidth Mode DC Volts/amps Dimensions Price
20B Series CW - 1mw to 20w 1.8 to 30 MHz SSB, CW or FM 13.8 vdc - 4 amps 4"W x 1"H x 8"D $495
50B Series CW - 1mw to 40w 1.8 to 30 MHz SSB, CW or FM 26.0 vdc - 4 amps 4"W x 1"H x 8"D $550

Return to top


Low Band Power Amplifiers (30 to 60 MHz)

Model Watts In/Out Bandwidth Mode DC Volts/amps Dimensions Price
C100C05 5-100 Mobile 5 MHz approx. FM only 13.8 vdc - 25 amps 4"W x 4"H x 9.5"D $750
C100C10 10-100 Mobile 5 MHz approx. FM only 13.8 vdc - 25 amps 4"W x 4"H x 9.5"D $725
C100C30 30-100 Mobile 5 MHz approx. FM only 13.8 vdc - 25 amps 4"W x 4"H x 9.5"D $650
C100C30R 30-100 Continuous 5 MHz approx. FM only 13.0 vdc - 25 amps 19"W x 6.25"H x 6"D $850
C100C30B 30-100 Base 5 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $1350
C300C02R 5-300 Continuous 5 MHz approx. FM only 13.8 vdc - 45 amps 19"W x 6.25"H x 6"D $1550
C300C02B 5-300 Base 5 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $2095
C300C10R 10-300 Continuous 5 MHz approx. FM only 13.8 vdc - 45 amps 19"W x 6.25"H x 6"D $1550
C300C10B 10-300 Base 5 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $2095
C300C30R 30-300 Continuous 5 MHz approx. FM only 13.8 vdc - 45 amps 19"W x 6.25"H x 6"D $1475
C300C30B 30-300 Base 5 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $1995

Return to top


Mid Band Power Amplifiers (60 to 88 MHz)

Model Watts In/Out Bandwidth Mode DC Volts/amps Dimensions Price
C130AB02R 5-100 Continuous 5 MHz approx. FM only 13.8 vdc - 25 amps 19"W x 6.25"H x 6"D $925
C130AB02B 5-100 Base 5 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $1395
C130AB10R 10-100 Continuous 5 MHz approx. FM only 13.8 vdc - 25 amps 19"W x 6.25"H x 6"D $895
C130AB10B 10-100 Base 5 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $1350
C130AB30R 30-100 Continuous 5 MHz approx. FM only 13.0 vdc - 25 amps 19"W x 6.25"H x 6"D $850
C130AB30B 30-100 Base 5 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $1295
C250AB02R 5-250 Continuous 5 MHz approx. FM only 13.8 vdc - 45 amps 19"W x 6.25"H x 6"D $1425
C250AB02B 5-250 Base 5 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $2095
C250AB10R 10-250 Continuous 5 MHz approx. FM only 13.8 vdc - 45 amps 19"W x 6.25"H x 6"D $1395
C250AB10B 10-250 Base 5 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $2025
C250AB30R 30-250 Continuous 5 MHz approx. FM only 13.8 vdc - 45 amps 19"W x 6.25"H x 6"D $1350
C250AB30B 30-250 Base 5 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $1975

Return to top


FM Band Power Amplifiers (88 to 108 MHz)

Model Watts In/Out Bandwidth Mode DC Volts/amps Dimensions Price
100D-95 10-100 Continuous 5 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $1300
100D-95 DC 10-100 Continuous 5 MHz approx. FM only 13.8 vdc - 25 amps 19"W x 6.25"H x 6"D $900
250D-95 10-250 Continuous 5 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $2300
250D-95 DC 10-250 Continuous 5 MHz approx. FM only 13.8 vdc - 45 amps 19"W x 6.25"H x 6"D $1450

Return to top


VHF Band Power Amplifiers (136 to 174 MHz)

Model Watts In/Out Bandwidth Mode DC Volts/amps Dimensions Price
C30A02 5-30 Mobile 5 MHz approx. FM only 13.8 vdc - 7 amps 4"W x 4"H x 5.5"D $325
C30A10 10-30 Mobile 5 MHz approx. FM only 13.8 vdc - 7 amps 4"W x 4"H x 5.5"D $295
C50A02 5-50 Mobile 5 MHz approx. FM only 13.8 vdc - 10 amps 4"W x 4"H x 9.5"D $425
C80A02 5-80 Mobile 5 MHz approx. FM only 13.8 vdc - 18 amps 4"W x 4"H x 9.5"D $495
C80A30 30-80 Mobile 5 MHz approx. FM only 13.8 vdc - 18 amps 4"W x 4"H x 9.5"D $450
C130AB02 5-130 Mobile 20 MHz approx. FM only 13.8 vdc - 25 amps 4"W x 4"H x 13.5"D $750
C130AB02R 5-100 Continuous 20 MHz approx. FM only 13.8 vdc - 25 amps 19"W x 6.25"H x 6"D $995
C130AB02B 5-100 Base 20 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $1450
C130AB10 10-130 Mobile 20 MHz approx. FM only 13.8 vdc - 25 amps 4"W x 4"H x 13.5"D $695
C130AB10R 10-100 Continuous 20 MHz approx. FM only 13.8 vdc - 25 amps 19"W x 6.25"H x 6"D $950
C130AB10B 10-100 Base 20 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $1450
C130AB30 30-130 Mobile 20 MHz approx. FM only 13.8 vdc - 25 amps 4"W x 4"H x 13.5"D $650
C130AB30R 30-100 Continuous 20 MHz approx. FM only 13.8 vdc - 25 amps 19"W x 6.25"H x 6"D $895
C130AB30B 30-100 Base 20 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $1350
C250AB02R 5-250 Continuous 10 MHz approx. FM only 13.8 vdc - 45 amps 19"W x 6.25"H x 6"D $1495
C250AB02B 5-250 Base 10 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $2095
C250AB10R 10-250 Continuous 10 MHz approx. FM only 13.8 vdc - 45 amps 19"W x 6.25"H x 6"D $1450
C250AB10B 10-250 Base 10 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $2050
C250AB30R 30-250 Continuous 10 MHz approx. FM only 13.8 vdc - 45 amps 19"W x 6.25"H x 6"D $1395
C250AB30B 30-250 Base 10 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $1995

*Base power supply for 500 watt amps on a separate chassis

Return to top


220 MHz Band Amplifiers

Model Watts In/Out Bandwidth Mode DC Volts/amps Dimensions Price
C100B02R 5-100 Continuous 5 MHz approx. FM only 13.8 vdc - 25 amps 19"W x 6.25"H x 6"D $895
C100B10R 10-100 Continuous 5 MHz approx. FM only 13.8 vdc - 25 amps 19"W x 6.25"H x 6"D $875
C100B30R 30-100 Continuous 5 MHz approx. FM only 13.8 vdc - 25 amps 19"W x 6.25"H x 6"D $825

Return to top


UHF Band Power Amplifiers (400 to 512 MHz)

Model Watts In/Out Bandwidth Mode DC Volts/amps Dimensions Price
C10D01 1-10 Mobile 10 MHz approx. FM only 13.8 vdc - 6 amps 4”W x 3”H x 4”D $295
C10D02 2-10 Mobile 10 MHz approx. FM only 3.8 vdc - 6 amps 4”W x 3”H x 4”D $275
C25D02 5-25 Mobile 10 MHz approx. FM only 13.8 vdc - 7 amps 4"W x 4"H x 5.5"D $350
C40D01 1-40 Mobile 10 MHz approx. FM only 13.8 vdc - 10 amps 4"W x 4"H x 9.5"D $325
C40D02 2-40 Mobile 10 MHz approx. FM only 13.8 vdc - 10 amps 4"W x 4"H x 9.5"D $395
C40D10 10-40 Mobile 10 MHz approx. FM only 13.8 vdc - 10 amps 4"W x 4"H x 9.5"D $325
C70D02 5-70 Mobile 10 MHz approx. FM only 13.8 vdc - 18 amps 4"W x 4"H x 9.5"D $575
C70D10 10-70 Mobile 10 MHz approx. FM only 13.8 vdc - 18 amps 4"W x 4"H x 9.5"D $550
C70D30 30-70 Mobile 10 MHz approx. FM only 13.8 vdc - 18 amps 4"W x 4"H x 9.5"D $475
C100D02 5-100 Mobile 10 MHz approx. FM only 13.8 vdc - 25 amps 4"W x 4"H x 13.5"D $750
C100D02R 5-100 Continuous 10 MHz approx. FM only 13.8 vdc - 25 amps 19"W x 6.25"H x 6"D $995
C100D02B 5-100 Base 10 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $1495
C100D10 10-100 Mobile 10 MHz approx. FM only 13.8 vdc - 25 amps 4"W x 4"H x 13.5"D $725
C100D10R 10-100 Continuous 10 MHz approx. FM only 13.8 vdc - 25 amps 19"W x 6.25"H x 6"D $975
C100D10B 10-100 Base 10 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $1395
C100D30 30-100 Mobile 10 MHz approx. FM only 13.8 vdc - 25 amps 4"W x 4"H x 13.5"D $675
C100D30R 30-100 Continuous 10 MHz approx. FM only 13.8 vdc - 25 amps 19"W x 6.25"H x 6"D $925
C100D30B 30-100 Base 10 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $1375
C200D02R 5-200 Continuous 10 MHz approx. FM only 13.8 vdc - 45 amps 19"W x 6.25"H x 6"D $1495
C200D02B 5-200 Base 10 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $2095
C200D10R 5-200 Continuous 10 MHz approx. FM only 13.8 vdc - 45 amps 19"W x 6.25"H x 6"D $1425
C200D10B 10-250 Base 10 MHz approx. FM only 110/220 vac 19"W x 7"H x 17.5"D $2025
C200D30R 30-200 Continuous 10 MHz approx. FM only 13.8 vdc - 45 amps 19"W x 6.25"H x 6"D $1375
C200D30B 30-200 Continuous 10 MHz approx. FM only 13.8 vdc - 45 amps 19"W x 6.25"H x 6"D $1975

Return to top

Mobile power amplifiers (50% duty cycle) have T/R relay already installed.
Add $100 for T/R or dropout relay on any "base or continuous" amplifier up to 100 watts out below.
Add $250 for T/R or dropout relay on any "base or continuous" amplifier over 100 watts out below.
On amps listed as 5 watts input, specify your drive power of 1, 2, 3, 4 or 5 watts to get rated power output
